PHP MCP Client Implementation¶
This guide covers implementing an MCP client in PHP for integrating with Rea.
Overview¶
An MCP client is responsible for:
- Connecting to MCP servers
- Initializing the protocol with capability negotiation
- Discovering available tools, resources, and prompts
- Executing tool calls and resource reads
- Managing the connection lifecycle
Prerequisites¶
- PHP 8.1+
- Composer
- Symfony Process component (for stdio)
- Guzzle HTTP client (for HTTP transport)

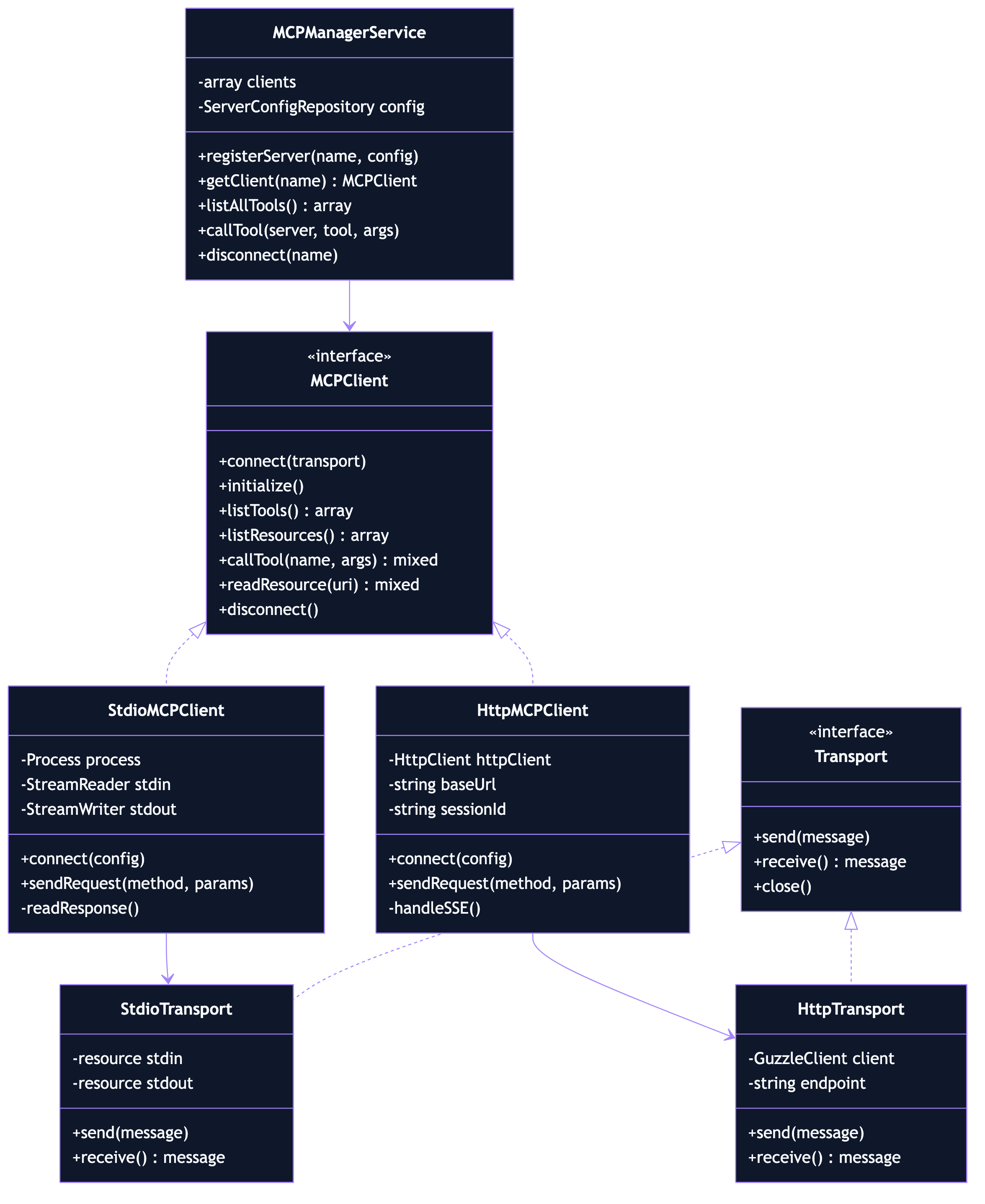

Client Interface¶
app/Contracts/MCPClientInterface.php
<?php
namespace App\Contracts;
interface MCPClientInterface
{
/**
* Connect to the MCP server.
*
* @throws ConnectionException
*/
public function connect(): void;
/**
* Check if connected to the server.
*/
public function isConnected(): bool;
/**
* Get server information.
*
* @return array{name: string, version: string}
*/
public function getServerInfo(): array;
/**
* Get server capabilities.
*/
public function getCapabilities(): array;
/**
* List available tools.
*
* @return array<int, array{
* name: string,
* description: string,
* inputSchema: array
* }>
*/
public function listTools(): array;
/**
* Call a tool.
*
* @param string $name Tool name
* @param array $arguments Tool arguments
* @return array{content: array, isError?: bool}
* @throws ToolExecutionException
*/
public function callTool(string $name, array $arguments = []): array;
/**
* List available resources.
*
* @return array<int, array{
* uri: string,
* name: string,
* mimeType?: string
* }>
*/
public function listResources(): array;
/**
* Read a resource.
*
* @param string $uri Resource URI
* @return array{uri: string, mimeType: string, text?: string, blob?: string}
*/
public function readResource(string $uri): array;
/**
* List available prompts.
*
* @return array<int, array{
* name: string,
* description?: string,
* arguments?: array
* }>
*/
public function listPrompts(): array;
/**
* Get a prompt.
*
* @param string $name Prompt name
* @param array $arguments Prompt arguments
* @return array{description?: string, messages: array}
*/
public function getPrompt(string $name, array $arguments = []): array;
/**
* Disconnect from the server.
*/
public function disconnect(): void;
}
Base Client Implementation¶
app/Services/MCP/BaseMCPClient.php
<?php
namespace App\Services\MCP;
use App\Contracts\MCPClientInterface;
use App\Exceptions\MCPException;
use Illuminate\Support\Facades\Log;
abstract class BaseMCPClient implements MCPClientInterface
{
protected bool $connected = false;
protected array $serverInfo = [];
protected array $capabilities = [];
protected int $requestId = 0;
protected array $config;
public function __construct(array $config)
{
$this->config = $config;
}
public function connect(): void
{
$this->doConnect();
// Send initialize request
$response = $this->sendRequest('initialize', [
'protocolVersion' => '2024-11-05',
'capabilities' => $this->getClientCapabilities(),
'clientInfo' => [
'name' => 'rea-mcp-client',
'version' => config('app.version', '1.0.0'),
],
]);
$this->serverInfo = $response['serverInfo'] ?? [];
$this->capabilities = $response['capabilities'] ?? [];
// Send initialized notification
$this->sendNotification('notifications/initialized');
$this->connected = true;
Log::info('MCP client connected', [
'server' => $this->serverInfo,
'capabilities' => $this->capabilities,
]);
}
public function isConnected(): bool
{
return $this->connected;
}
public function getServerInfo(): array
{
return $this->serverInfo;
}
public function getCapabilities(): array
{
return $this->capabilities;
}
public function listTools(): array
{
$this->ensureConnected();
$response = $this->sendRequest('tools/list');
return $response['tools'] ?? [];
}
public function callTool(string $name, array $arguments = []): array
{
$this->ensureConnected();
Log::debug('Calling MCP tool', [
'tool' => $name,
'arguments' => $arguments,
]);
$response = $this->sendRequest('tools/call', [
'name' => $name,
'arguments' => $arguments,
]);
if (isset($response['isError']) && $response['isError']) {
Log::warning('MCP tool returned error', [
'tool' => $name,
'error' => $response['content'],
]);
}
return $response;
}
public function listResources(): array
{
$this->ensureConnected();
if (!$this->hasCapability('resources')) {
return [];
}
$response = $this->sendRequest('resources/list');
return $response['resources'] ?? [];
}
public function readResource(string $uri): array
{
$this->ensureConnected();
$response = $this->sendRequest('resources/read', [
'uri' => $uri,
]);
return $response['contents'][0] ?? [];
}
public function listPrompts(): array
{
$this->ensureConnected();
if (!$this->hasCapability('prompts')) {
return [];
}
$response = $this->sendRequest('prompts/list');
return $response['prompts'] ?? [];
}
public function getPrompt(string $name, array $arguments = []): array
{
$this->ensureConnected();
return $this->sendRequest('prompts/get', [
'name' => $name,
'arguments' => $arguments,
]);
}
public function disconnect(): void
{
if ($this->connected) {
$this->doDisconnect();
$this->connected = false;
Log::info('MCP client disconnected');
}
}
// Abstract methods for transport-specific implementation
abstract protected function doConnect(): void;
abstract protected function doDisconnect(): void;
abstract protected function sendMessage(array $message): void;
abstract protected function receiveMessage(int $expectedId): array;
protected function sendRequest(string $method, array $params = []): array
{
$id = ++$this->requestId;
$request = [
'jsonrpc' => '2.0',
'id' => $id,
'method' => $method,
];
if (!empty($params)) {
$request['params'] = $params;
}
$this->sendMessage($request);
$response = $this->receiveMessage($id);
if (isset($response['error'])) {
throw new MCPException(
$response['error']['message'],
$response['error']['code'] ?? 0
);
}
return $response['result'] ?? [];
}
protected function sendNotification(string $method, array $params = []): void
{
$notification = [
'jsonrpc' => '2.0',
'method' => $method,
];
if (!empty($params)) {
$notification['params'] = $params;
}
$this->sendMessage($notification);
}
protected function getClientCapabilities(): array
{
return [
'roots' => [
'listChanged' => true,
],
];
}
protected function hasCapability(string $capability): bool
{
return isset($this->capabilities[$capability]);
}
protected function ensureConnected(): void
{
if (!$this->connected) {
throw new MCPException('Not connected to MCP server');
}
}
}
stdio Client Implementation¶
app/Services/MCP/StdioMCPClient.php
<?php
namespace App\Services\MCP;
use App\Exceptions\MCPException;
use Symfony\Component\Process\Process;
class StdioMCPClient extends BaseMCPClient
{
private ?Process $process = null;
private $inputStream = null;
private string $outputBuffer = '';
protected function doConnect(): void
{
$command = array_merge(
[$this->config['command']],
$this->config['args'] ?? []
);
$env = array_merge(
getenv(),
$this->config['env'] ?? []
);
$this->process = new Process($command, null, $env);
$this->process->setTimeout(null);
// Use pipes for bidirectional communication
$this->process->setInput(STDIN);
$descriptors = [
0 => ['pipe', 'r'], // stdin
1 => ['pipe', 'w'], // stdout
2 => ['pipe', 'w'], // stderr
];
$this->process->start(function ($type, $buffer) {
if ($type === Process::ERR) {
// Log stderr output
error_log("MCP stderr: {$buffer}");
}
});
// Get the input stream
$pipes = $this->process->getPipes();
$this->inputStream = $pipes[0];
// Wait for process to be ready
usleep(500000); // 500ms
if (!$this->process->isRunning()) {
$error = $this->process->getErrorOutput();
throw new MCPException("Failed to start MCP server: {$error}");
}
}
protected function doDisconnect(): void
{
if ($this->inputStream !== null) {
fclose($this->inputStream);
$this->inputStream = null;
}
if ($this->process !== null) {
$this->process->stop(3);
$this->process = null;
}
$this->outputBuffer = '';
}
protected function sendMessage(array $message): void
{
if ($this->inputStream === null) {
throw new MCPException('Not connected');
}
$json = json_encode($message, JSON_UNESCAPED_SLASHES);
fwrite($this->inputStream, $json . "\n");
fflush($this->inputStream);
}
protected function receiveMessage(int $expectedId): array
{
$timeout = $this->config['timeout'] ?? 30;
$startTime = time();
while (time() - $startTime < $timeout) {
// Read from process output
$output = $this->process->getIncrementalOutput();
if (!empty($output)) {
$this->outputBuffer .= $output;
}
// Try to parse complete messages
while (($pos = strpos($this->outputBuffer, "\n")) !== false) {
$line = substr($this->outputBuffer, 0, $pos);
$this->outputBuffer = substr($this->outputBuffer, $pos + 1);
if (empty(trim($line))) {
continue;
}
$message = json_decode($line, true);
if (json_last_error() !== JSON_ERROR_NONE) {
continue;
}
// Check if this is the response we're waiting for
if (isset($message['id']) && $message['id'] === $expectedId) {
return $message;
}
// Handle notifications
if (!isset($message['id']) && isset($message['method'])) {
$this->handleNotification($message);
}
}
usleep(10000); // 10ms
}
throw new MCPException('Request timeout');
}
protected function handleNotification(array $notification): void
{
$method = $notification['method'] ?? '';
switch ($method) {
case 'notifications/tools/list_changed':
// Invalidate tools cache
event('mcp.tools.changed');
break;
case 'notifications/resources/list_changed':
// Invalidate resources cache
event('mcp.resources.changed');
break;
default:
// Log unknown notification
Log::debug('Unknown MCP notification', [
'method' => $method,
]);
}
}
}
HTTP Client Implementation¶
app/Services/MCP/HttpMCPClient.php
<?php
namespace App\Services\MCP;
use App\Exceptions\MCPException;
use GuzzleHttp\Client;
use GuzzleHttp\Exception\RequestException;
class HttpMCPClient extends BaseMCPClient
{
private Client $httpClient;
private ?string $sessionId = null;
protected function doConnect(): void
{
$this->httpClient = new Client([
'base_uri' => $this->config['url'],
'timeout' => $this->config['timeout'] ?? 30,
'headers' => $this->config['headers'] ?? [],
]);
}
protected function doDisconnect(): void
{
if ($this->sessionId !== null) {
try {
$this->httpClient->delete('/mcp', [
'headers' => [
'Mcp-Session-Id' => $this->sessionId,
],
]);
} catch (\Exception $e) {
// Ignore disconnect errors
}
$this->sessionId = null;
}
}
protected function sendMessage(array $message): void
{
// For HTTP, we don't send messages separately
// They're sent as part of sendRequest
}
protected function receiveMessage(int $expectedId): array
{
// For HTTP, receiving is handled in sendRequest
throw new MCPException('Direct receive not supported for HTTP transport');
}
protected function sendRequest(string $method, array $params = []): array
{
$id = ++$this->requestId;
$request = [
'jsonrpc' => '2.0',
'id' => $id,
'method' => $method,
];
if (!empty($params)) {
$request['params'] = $params;
}
try {
$headers = [
'Content-Type' => 'application/json',
];
if ($this->sessionId !== null) {
$headers['Mcp-Session-Id'] = $this->sessionId;
}
$response = $this->httpClient->post('/mcp', [
'headers' => $headers,
'json' => $request,
]);
// Extract session ID from initialize response
if ($method === 'initialize') {
$sessionHeader = $response->getHeader('Mcp-Session-Id');
if (!empty($sessionHeader)) {
$this->sessionId = $sessionHeader[0];
}
}
$body = json_decode($response->getBody()->getContents(), true);
if (isset($body['error'])) {
throw new MCPException(
$body['error']['message'],
$body['error']['code'] ?? 0
);
}
return $body['result'] ?? [];
} catch (RequestException $e) {
$statusCode = $e->hasResponse()
? $e->getResponse()->getStatusCode()
: 0;
throw new MCPException(
"HTTP request failed: {$e->getMessage()}",
$statusCode
);
}
}
protected function sendNotification(string $method, array $params = []): void
{
$notification = [
'jsonrpc' => '2.0',
'method' => $method,
];
if (!empty($params)) {
$notification['params'] = $params;
}
try {
$headers = [
'Content-Type' => 'application/json',
];
if ($this->sessionId !== null) {
$headers['Mcp-Session-Id'] = $this->sessionId;
}
$this->httpClient->post('/mcp', [
'headers' => $headers,
'json' => $notification,
]);
} catch (\Exception $e) {
// Notifications don't require responses
Log::warning('Failed to send MCP notification', [
'method' => $method,
'error' => $e->getMessage(),
]);
}
}
}
Client Factory¶
app/Services/MCP/MCPClientFactory.php
<?php
namespace App\Services\MCP;
use App\Contracts\MCPClientInterface;
use InvalidArgumentException;
class MCPClientFactory
{
public static function create(array $config): MCPClientInterface
{
$transport = $config['transport'] ?? 'stdio';
return match ($transport) {
'stdio' => new StdioMCPClient($config),
'http' => new HttpMCPClient($config),
default => throw new InvalidArgumentException(
"Unknown transport: {$transport}"
),
};
}
}
Usage Example¶
<?php
use App\Services\MCP\MCPClientFactory;
// Create client from config
$config = [
'transport' => 'stdio',
'command' => 'npx',
'args' => ['-y', '@notionhq/notion-mcp-server'],
'env' => [
'NOTION_TOKEN' => env('NOTION_TOKEN'),
],
];
$client = MCPClientFactory::create($config);
try {
// Connect
$client->connect();
echo "Connected to: " . $client->getServerInfo()['name'] . "\n";
// List tools
$tools = $client->listTools();
echo "Available tools:\n";
foreach ($tools as $tool) {
echo " - {$tool['name']}: {$tool['description']}\n";
}
// Call a tool
$result = $client->callTool('search', [
'query' => 'meeting notes',
]);
echo "Search results:\n";
print_r($result);
} finally {
$client->disconnect();
}
Next Steps¶
- PHP MCP Server - Build your own MCP server
- Rea Integration - Integrate with Rea platform
- Security - Secure your implementation
